SPECIFICATIONS



Origin: US(Origin)

Flexible Solar Panel: No

Foldable Solar Panel: Yes

Type: Solar Panel

Model Number: AP-SP-027-BLA-NEW

Size: 55.00*33.00*7.00

Material: Polycrystalline Silicon

Nominal Capacity: 18V100W

Number of Cells: 2 solar panels

Max. Power: 100W

* Multi-Contact 4 port: 25A(max) more current than DC port with only 10A (max).

Faster and safer charging with our advanced technologies.

* Professional and million+ happy users.

* High efficiency conversion rate: up to 22%.

while most of the similar products on the market is 15% or even lower.

* Whether you're charging a generator phone laptop or refueling a power pack, solar power has you covered. Our foldable portable polycrystalline solar panels are rugged, reliable, and easy to use. Harness the sun with portable solar power wherever you are.

MADE FOR SOLAR GENERATORS：

Compatible with most solar generator/portable power station on the market.

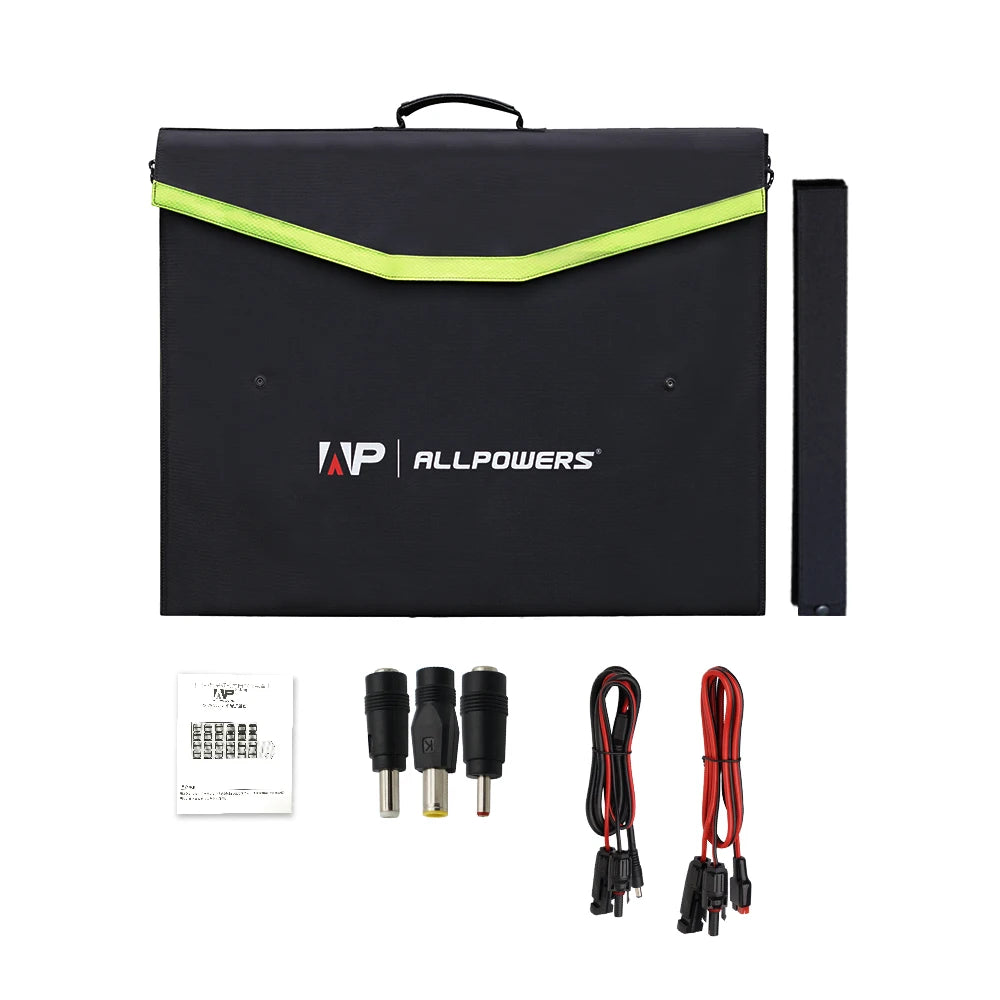

Includes different size of connectors:

* 8mm DC Adapter for Goal Zero/Jackery,

* 5.5 * 2.5mm DC Adapter for Suaoki portable Generator,

* Anderson Adapter for ALLPOWER portable Generator.

Attention:

1. Please check the model, size, voltage and power of your original adapter to ensure compatibility before purchasing the product.

2. This item is solar panel, please put it under strong sunlight, cloudy weather may affect its normal working and power.

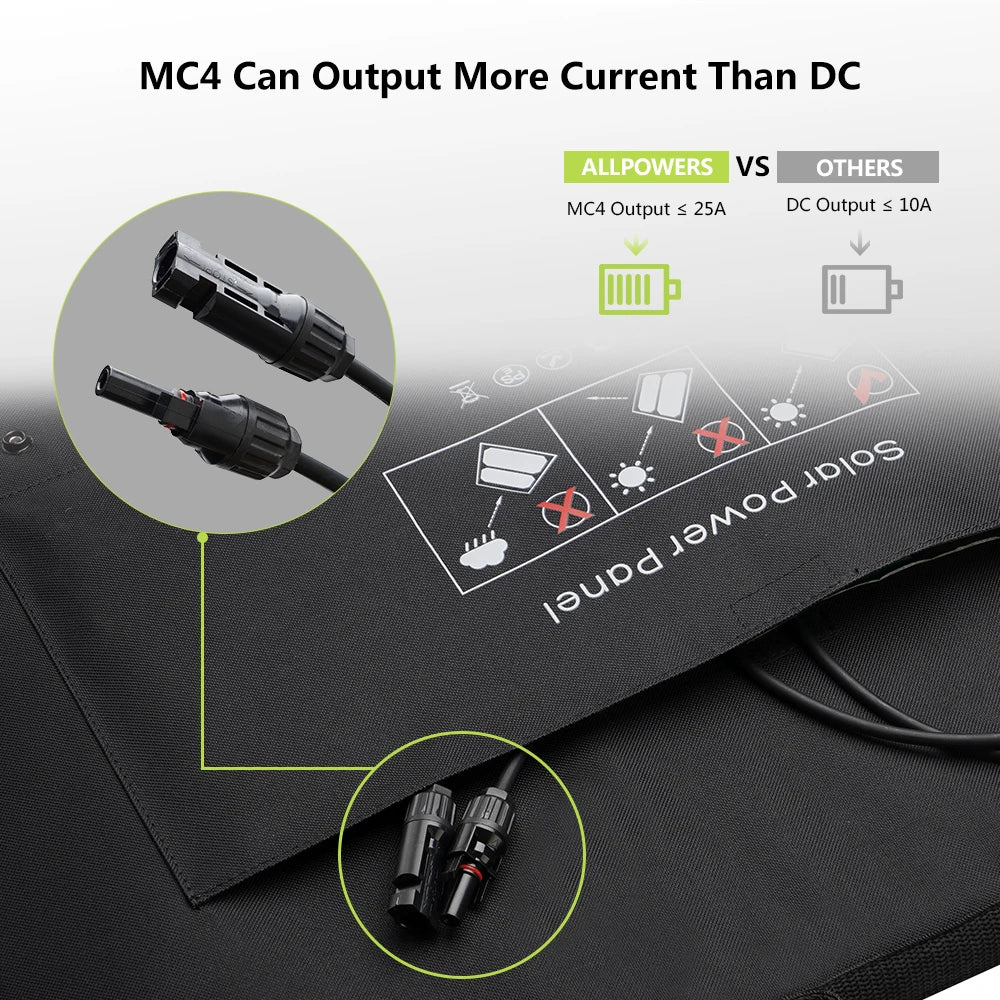

Multi-Contact 4 Output can deliver 25A(max)current while the DC port only carry 10A,charging faster and safer with our advanced technologies.

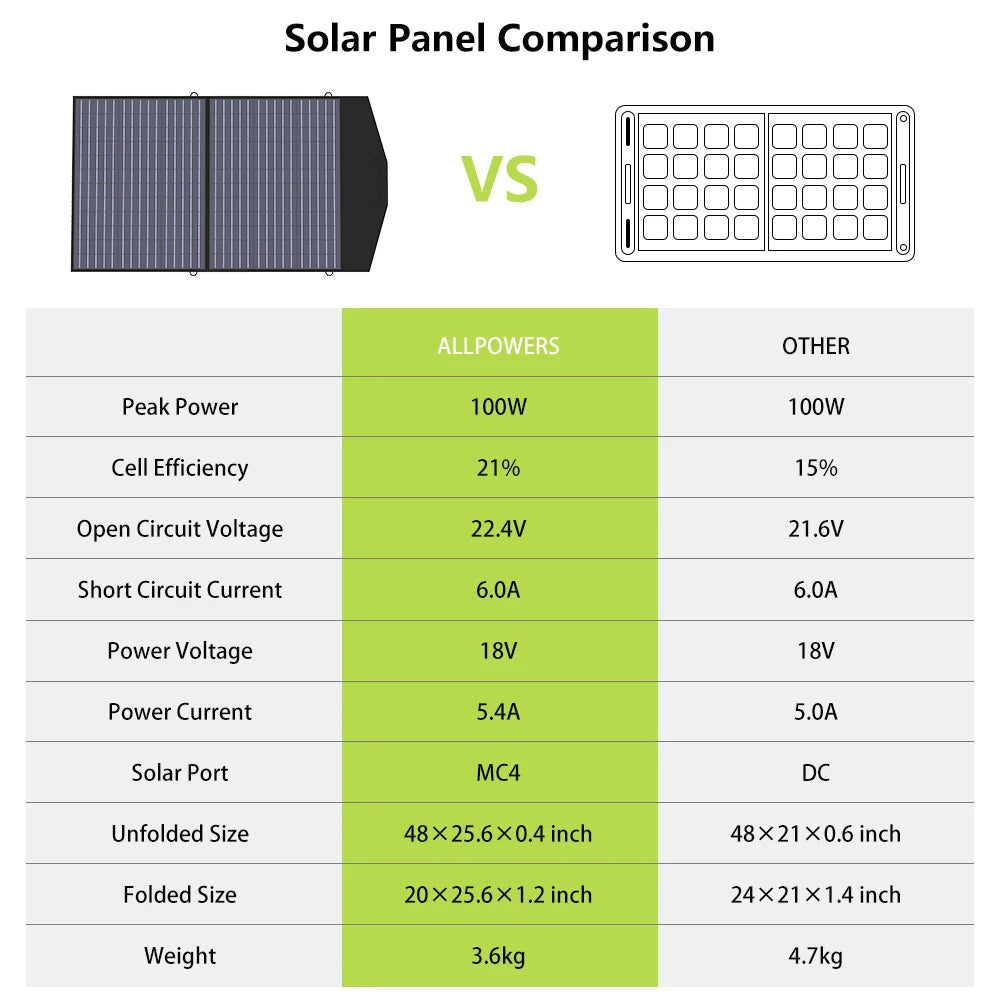

* Peak Power: 100W

* Open Circuit Voltage (Voc): 22.4V

* Short Circuit Current (IOC): 6.0A

* Maximum Power Voltage (Vmp): 18V

* Maximum Power Current (Imp): 5.4A

* STC Irradiance 1000W/m² , TC=25℃, AM=1.5

* Unfolded Size：1220×650×10mm/48×25.6×0.4inch

* Folded Size：510×650×30mm/20×25.6×1.2inch

* Net Weight: 3.6kg/7.9lb

The solar panel is equipped with PV-rated, output Multi-Contact 4 cables,The Positive connector is a male connector and the

negative connector is a female connector, these wires by themselves are rated for series connections.

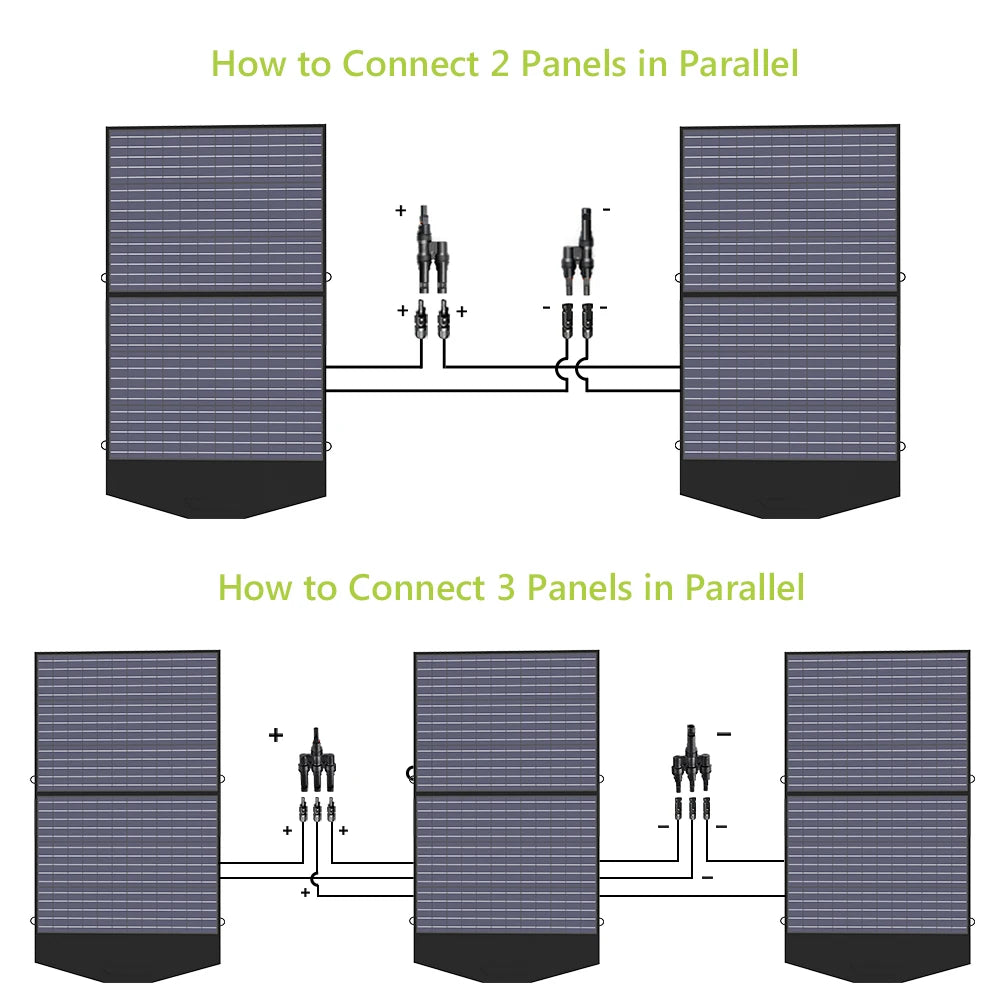

When the solar panels are connected in series (+ connected to -, + connected to-), the voltage is added;

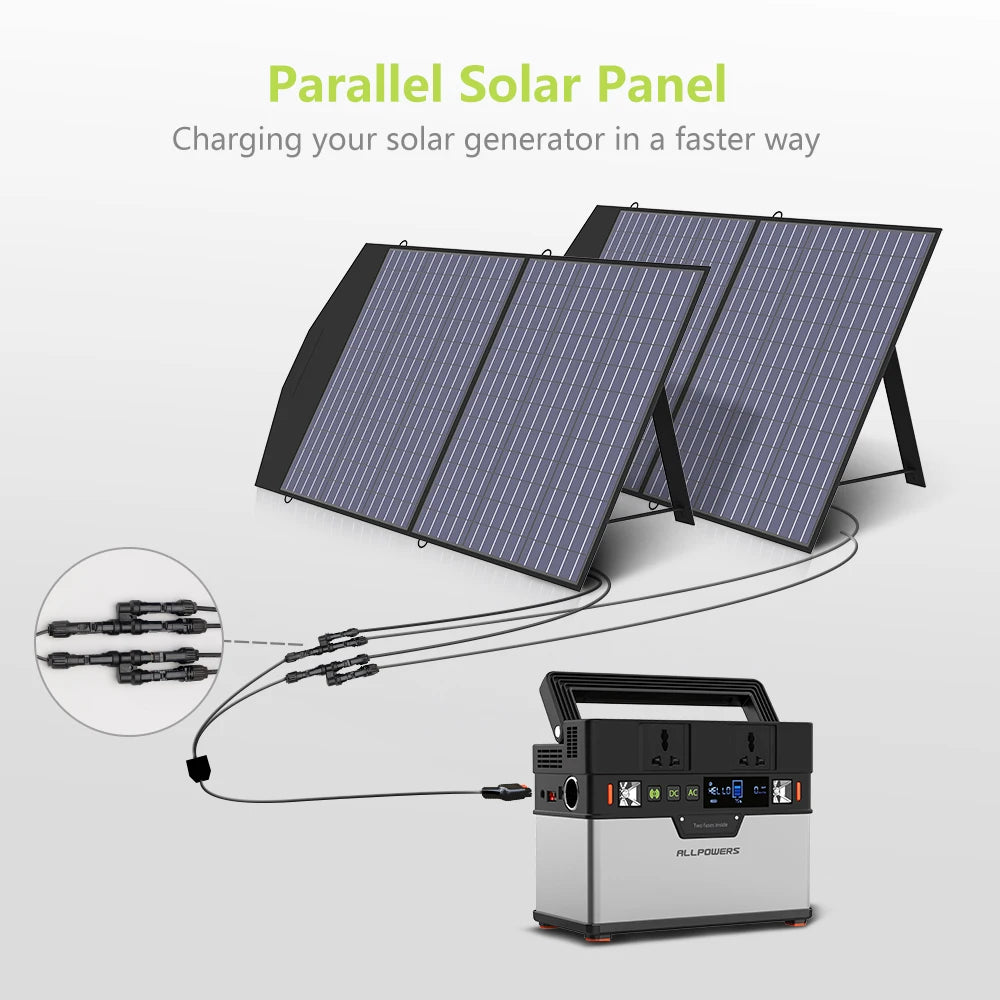

when the solar panels are connected in parallel (+ connected to +,-connected to -), the current is added.

Note: Parallel connection, it need to purchase extra Multi-Contact 4 Y connectors, (Negative to Negative, Positive to Positive)
